This article outlines the range of Stonebloc block types and sizes and when and how to use each type to deliver the best solution.
The Stonebloc wall system consists of 11 different blocks. Each block is a variation of the two core sizes - 800 and 400. Refer to the design guide for more information on when to use each block.
|
|
|
|
|

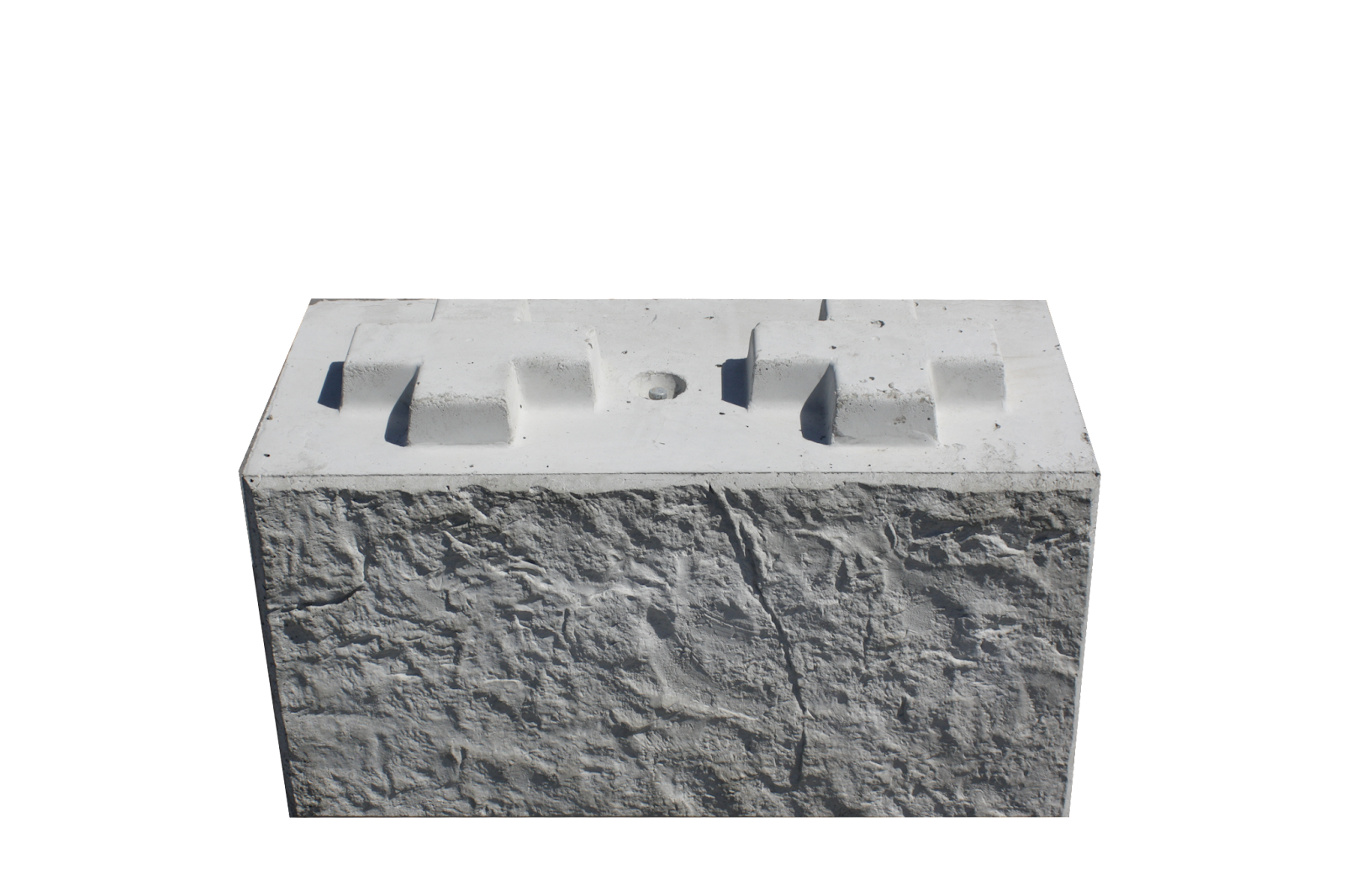

800 Standard Block 800mm wide x 400mm high x 400mm deep 300kg SKU: 4SB800STD |

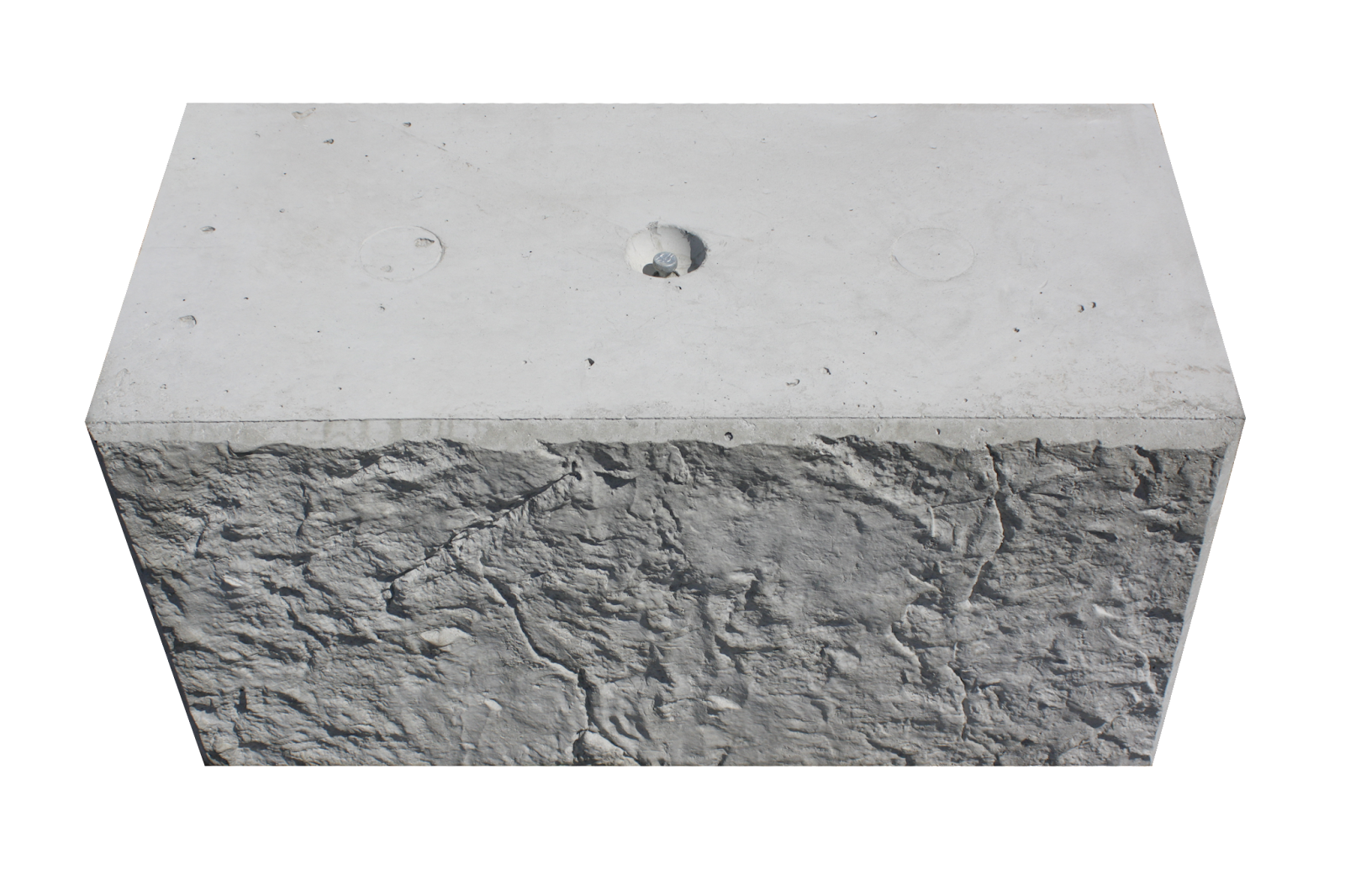

800 Flat Top Block 800mm wide x 400mm high x 400mm deep 300kg SKU: 4SB800FT |
800 Standard Double Ended Block 800mm wide x 400mm high x 400mm deep 300kg SKU: 4SB800STDDE |
|
|
|
|
|
800 Flat Top Double Ended Block 800mm wide x 400mm high x 400mm deep 300kg SKU: 4SB800FTDE |

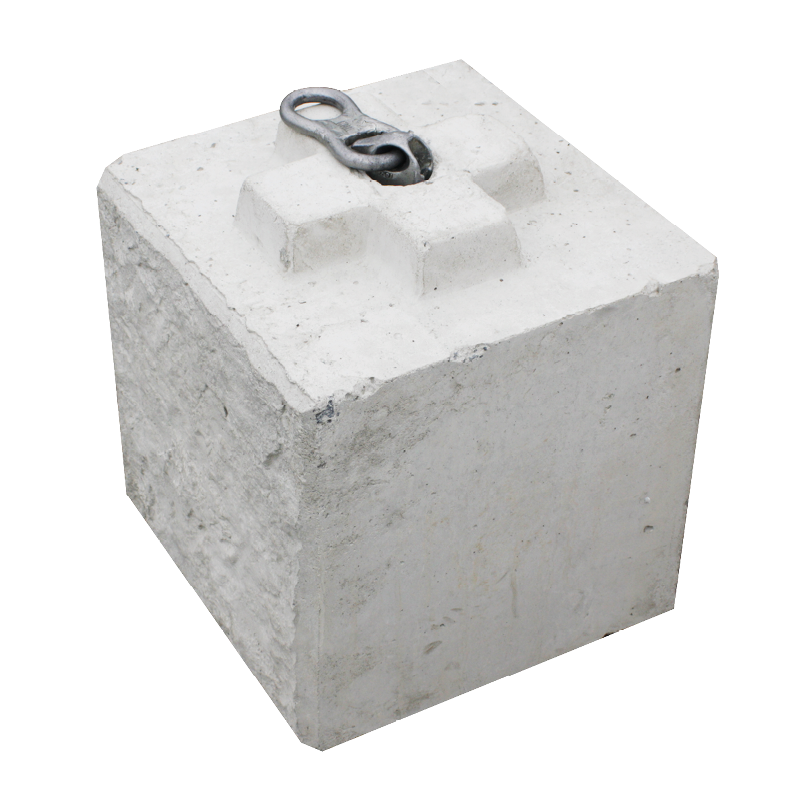

400 Standard Block 400mm wide x 400mm high x 400mm deep 150kg SKU: 4SB400STD |

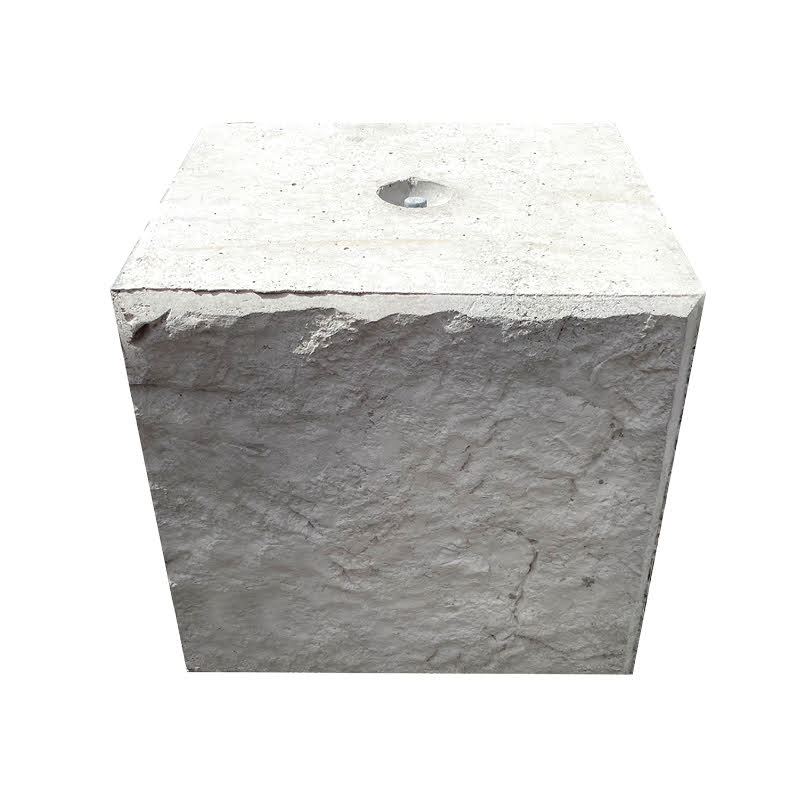

400 Flat Top Block 400mm wide x 400mm high x 400mm deep 150kg SKU: 4SB400FT |
|
|
|
|
|

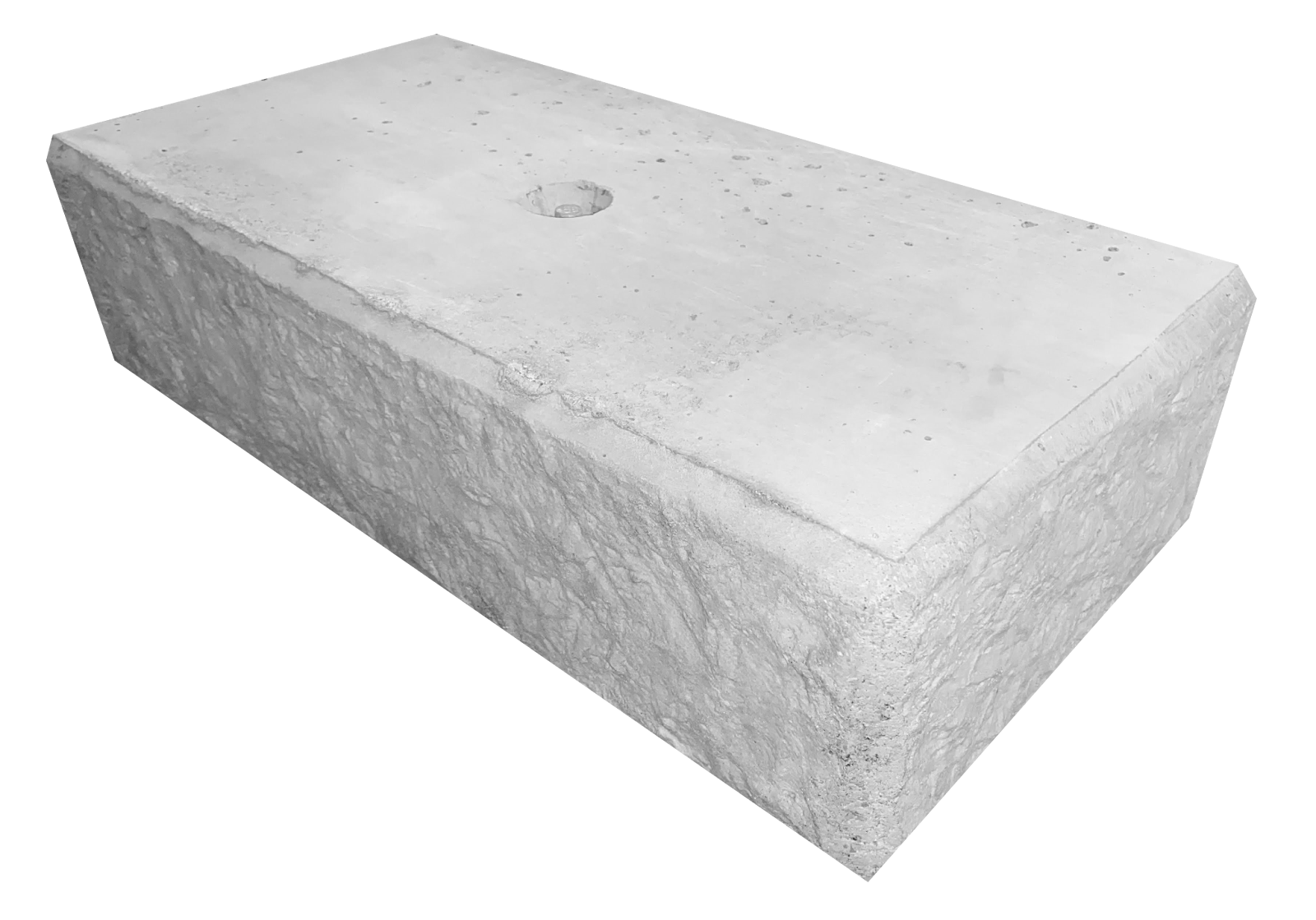

200 Capper Block 800mm wide x 200mm high x 400mm deep 150kg SKU: 4SB200CAP |
200 Capper Double Ended Block 800mm wide x 200mm high x 400mm deep 150kg SKU: 4SB200CAPDE |
200 Half Capper Block 400mm wide x 200mm high x 400mm deep 75kg SKU: 4SB200HALFCAP |
|
|
|
|
|
1200 Base Block 800mm wide x 400mm high x 1200mm deep 900kg SKU: 4SB1200BASE |
800 Base Block 800mm wide x 400mm high x 800mm deep 600kg SKU: 4SB800BASE |
General Design Guidance:
As a general rule;
- The top layer of a Stonebloc wall will consist of a Capper or Flat top to ensure a smooth finish to the wall.
- The second layer will consist of a 400 wide standard block.
- The subsequent layers will consist of base blocks of varying sizes depending on the height and surcharge on the wall.
Refer to our Stonebloc engineering manual and generic designs here.
Find out more information on our Stonebloc Stair range here.
